Model
|
DM4-8
|
DM5-12
|
DM6-14
|
DM10-25
|
|
Straightening range
|
4-8mm
|
5-12mm
|
6-14mm
|
10-25mm
|
|
Motor power
|
5.5kw
|
3kw/4kw
|
5.5kw
|
15kw
|
|
Reducer
|
100 model
|
250model
|
250 model
|
400model
|
|
Straightening speed
|
35m/min
|
35m/min
|
35m/min
|
35m/min
|
|
Machine size
|
1200*650*1100mm
|
1150*850*680mm
|
1150*750*1300mm
|
1400*1050*1350mm
|
|
Weight
|
320kg
|
560kg
|
530kg
|
850kg
|
|
Number of rollers
|
8
|
4 slots-1 inlet
|
5
|
8
|
Home | Rebar processing machinery
Rebar processing machinery

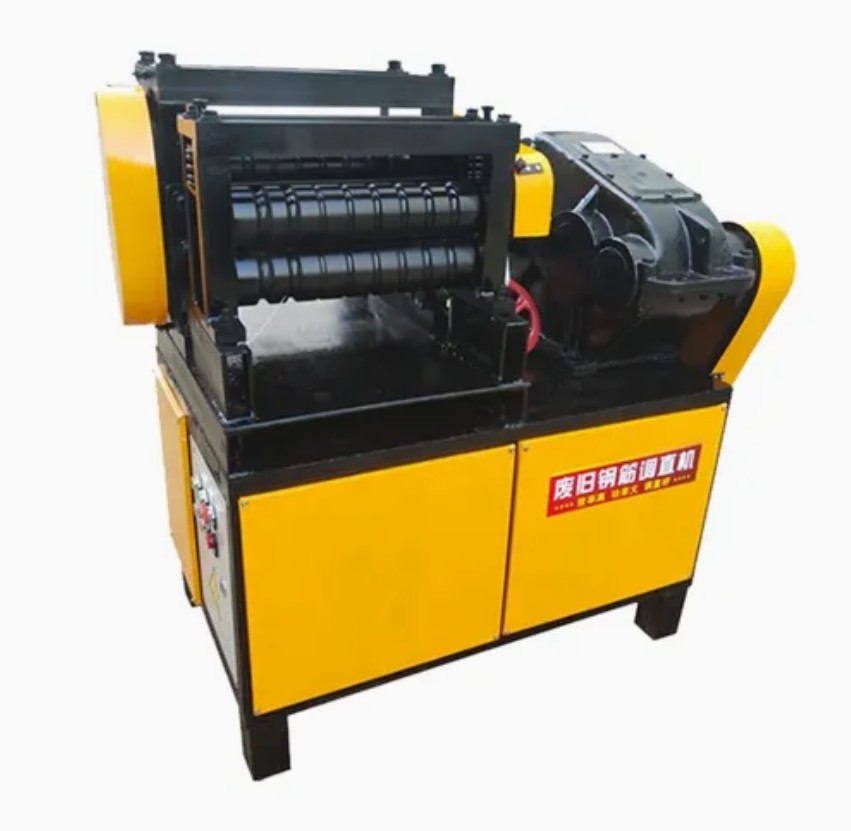

Rebar straightening machine
- Product description: Rebar straightening machine
Introduction of Steel Bar Straightening Machine:
Double feeding mouths can hold multiple waste bars, even slightly-bent steel bars. Both ends can cut at the same time, which greatly increases the processing efficiency. The cutter is easy to disassemble and replace (8-14 cm adjustable length at any time).The cutter body, made of special material, efficiently and practicably processed, with four sides, greatly prolongs the service life of the cutter. It is widely used when recycle waste rebars or steel bars.
