Rebar processing machinery

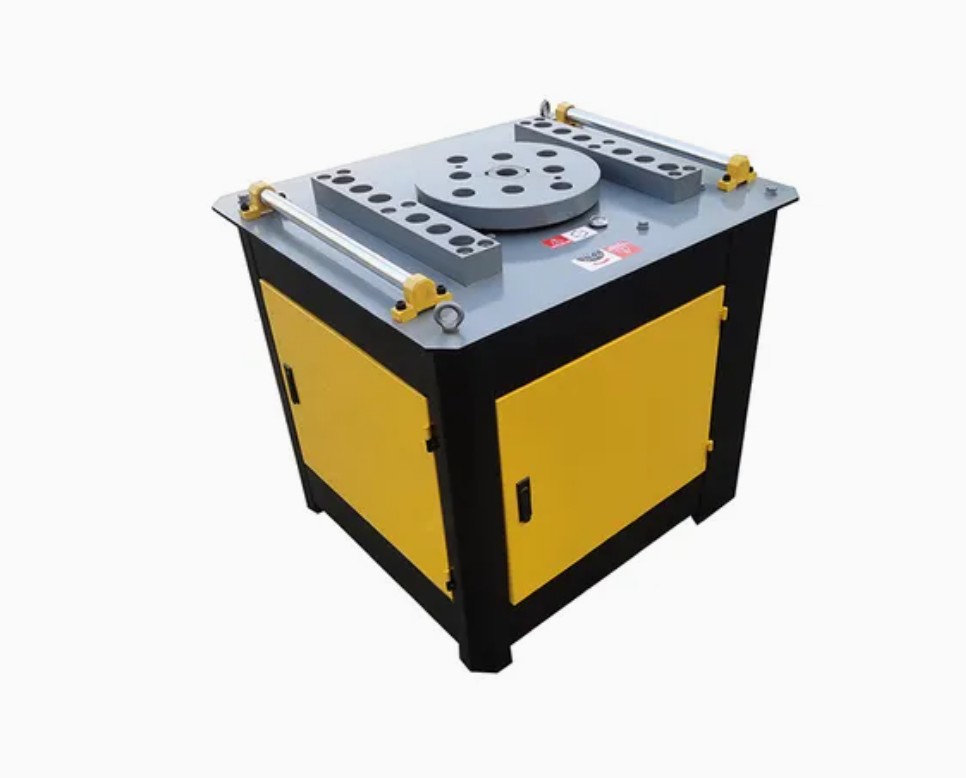

Gw40 Electric Rebar Bending Machine for 6– 60mm Rods
- Product description: Gw40 Electric Rebar Bending Machine for 6– 60mm Rods
GW40 Bar bending machine ,It can bend round steel diameter at 6-40mm into various shapes. Characteristics: Design reasonable, easy to operation, safe reliable, performance stable, it's fit for bridge, tunnel and big construction project.
Product Description
1. MOTOR TYPE: Automatic BRAKE MOTOR as Opotional ,Adjustable saddle and pin style working disc featured with easy adjustment and accurate bedning angle .The round working disc can turn back to original position automatically .
2. GEAR BOX & INSIDE GEAR: CAST STEEL GEAR SHAFT: C45 STEEL ,all spare parts can operate safely under heavy load for a long time .
3.STOP GAUGE: C45 STEEL PILE HEAD: CR 40 STEEL WORKING DISK :C45 STEEL EXTERNAL CASE: Q235 for a long working life.
4. Simplicity of operating: one person operation.
5. Pre-setting angle scope form 0-360 degree by adjusting the pin on work plate.
| MODEL/OPERATION | GW40-4 Automaticc Rebar Bending Machine | |
| TENSILE STRENGTH | Kg/mm2 45 | Kg/mm2 65 |
| STEEL BAR DIAMETER | 6-28 mm | 6-20mm |
| MOTOR POWER | 2.2 KW-4HP | 3-Phase 380V /50Hz |
| SPEED OF WORKING DISK | 5-15 R/min | |
| WEIGHT | 190 Kg. | |
| DIMENSIONS (L*W*H) | 920*810*950 mm | |
