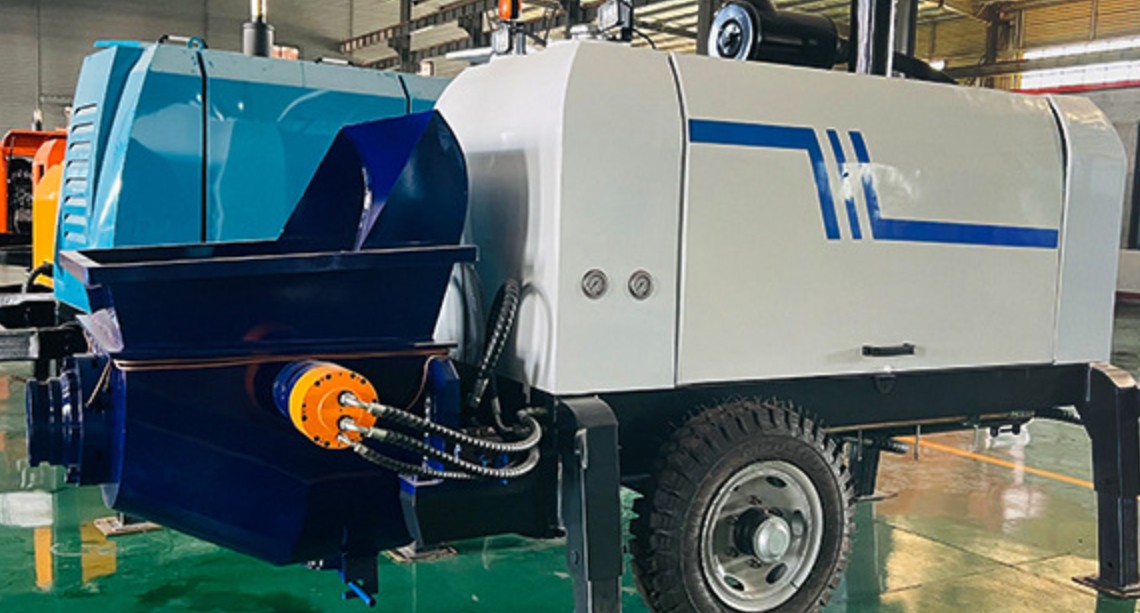

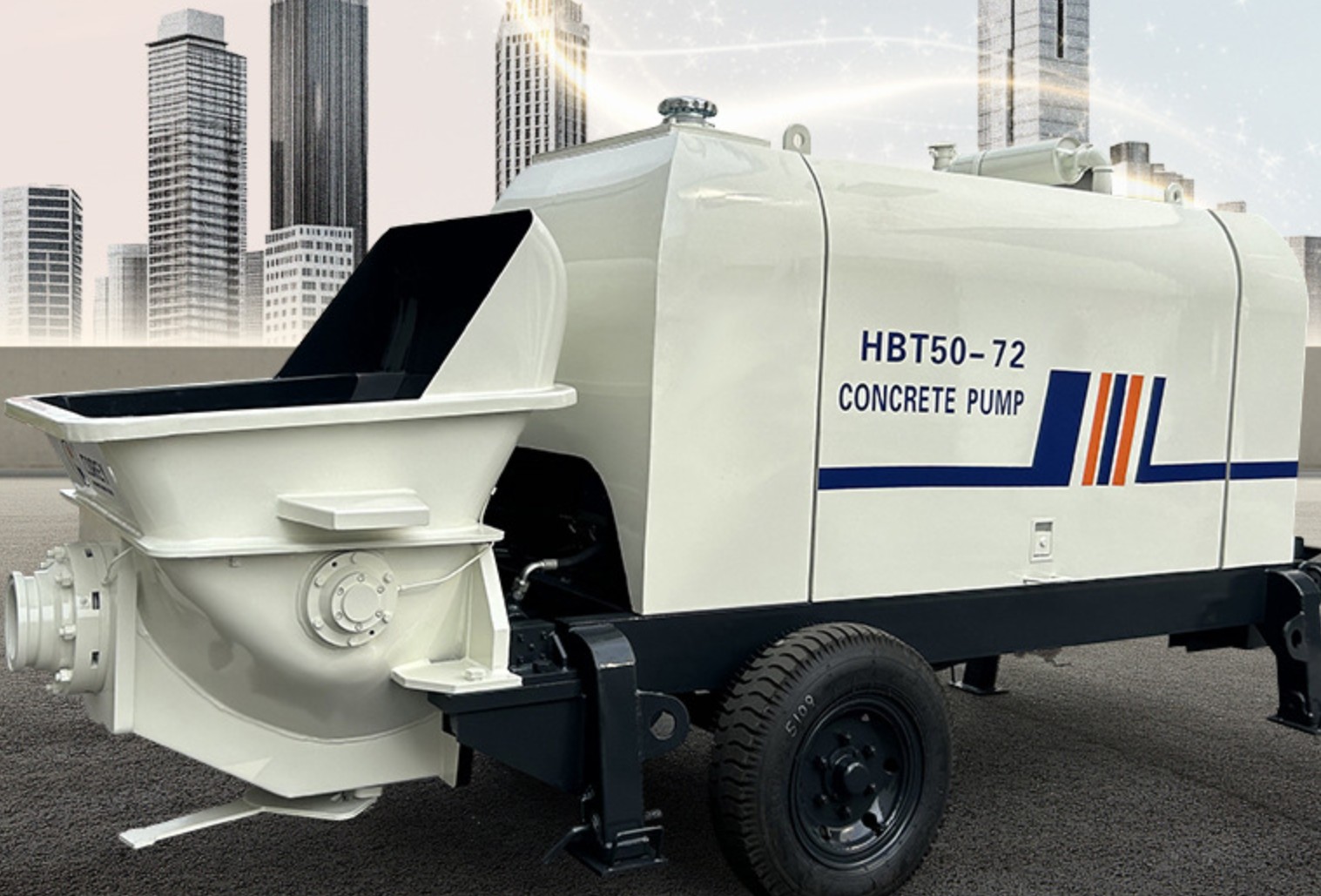

Concrete pump
concrete pump
- Product description: Manufacturer direct supply concrete conveying pump truck all-in-one machine secondary structure pouring column pump small ground pump Cement mortar
Item
Unit
Parameter
Pumping system
Max. theoretical delivery volume
m³/h
40
Max. theoretical delivery pressure
MPa
10
Max. theoretical delivery height (Φ125)
M
120
Max. theoretical delivery distance (Φ125)
m
300
Max. delivery frequency (Low/High pressure)
times/min
30
Distribution valve type
S tube valve
Main oil cylinder specification
mm
100/70×1000
Concrete cylinder specification
mm
160×1000
Hopper capacity
L
400
Output opening diameter
mm
125
Power system
Diesel engine power
KW
55
Rated rotation speed
r/min
2200
Hydraulic system
Type of Hydraulic oil circuit
Open oil circuit
Main oil pump
HANDOK
Maximum oil pressure of pumping system
MPa
28
Maximum oil pressure of mixing system
14
Highest mixing speed
r/min
40
Hydraulic oil tank capacity
L
260
Allowable max. diameter of aggregate
mm
30
Inner diameter of concrete delivery pipe
mm
Φ125/Φ100/Φ80
Dimension(length× width× height)
mm
4970×1680×2580
Weight
kg
3200
