Simple Use Concrete Pump High Output Concrete Pump for Sale

Product description:
INQUIRY

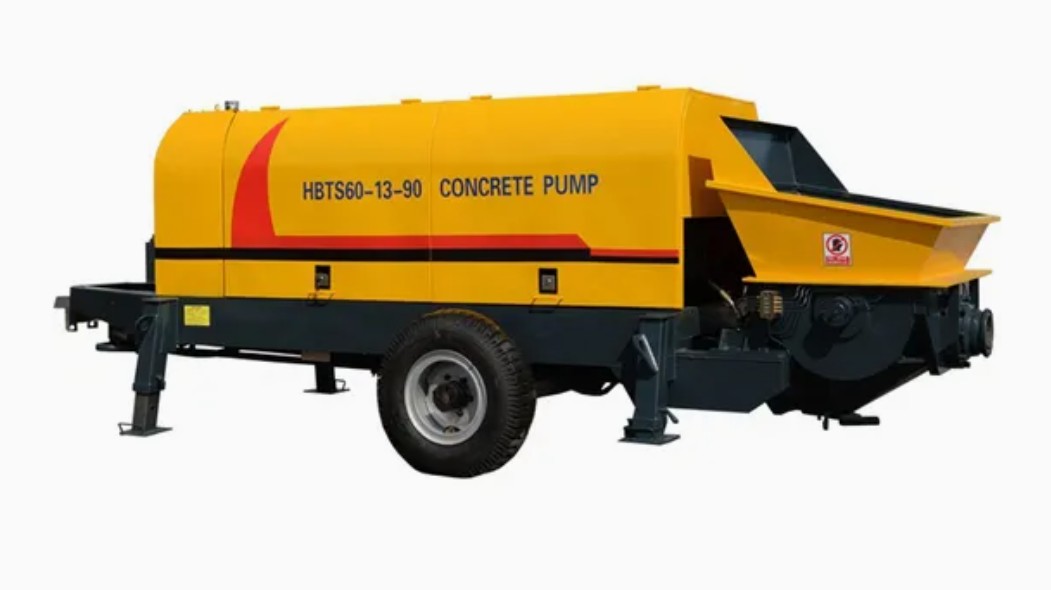

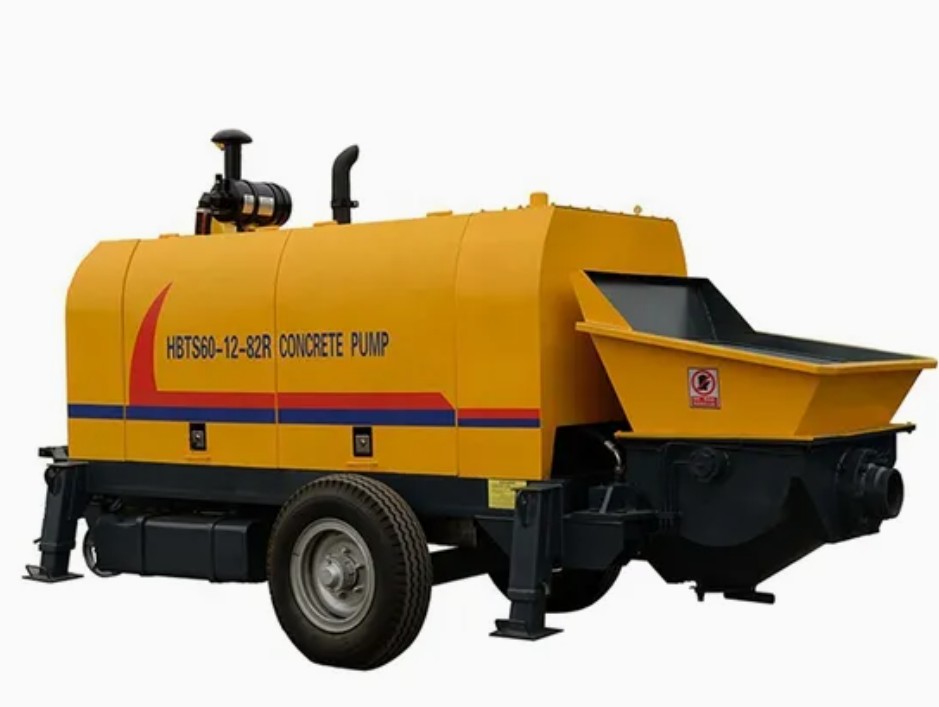

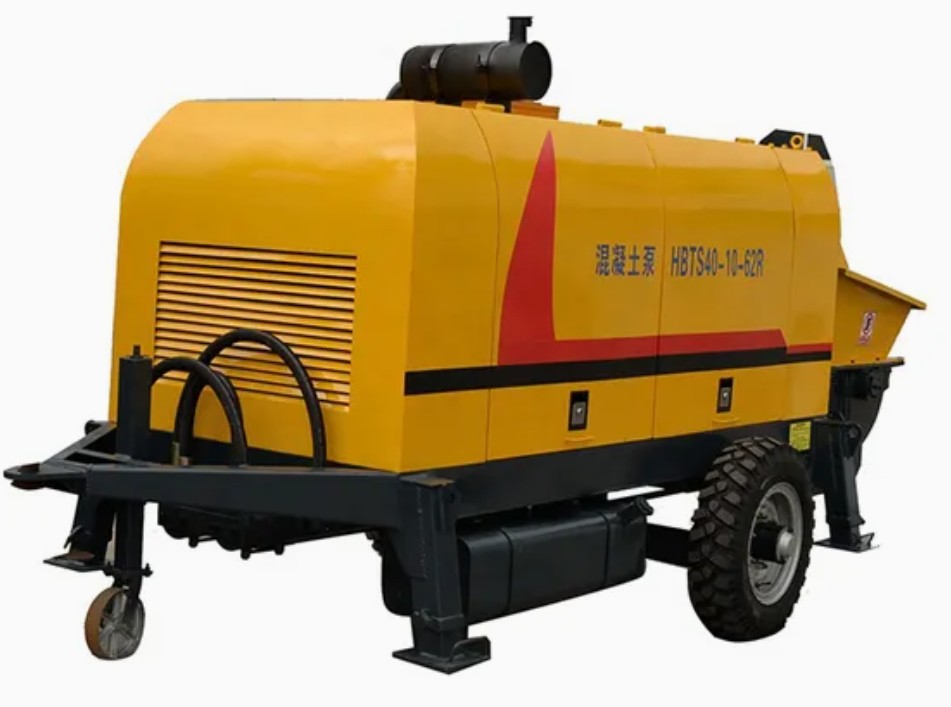

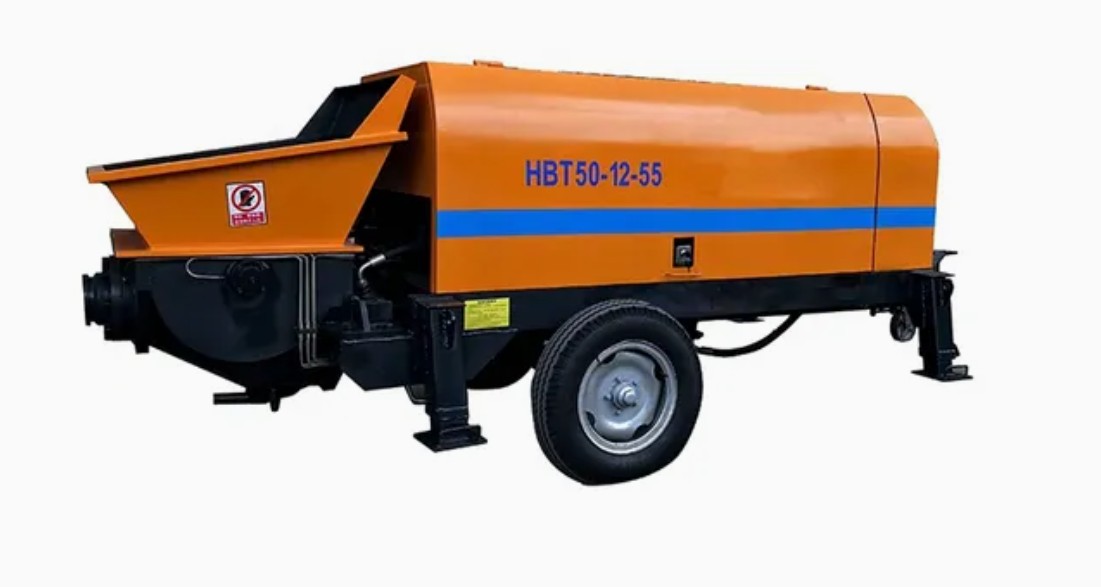

Diesel /electric mobile concrete pump for construction machinery

The concrete pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction,electric power and other energy source facilities and so on.

HBS/JBS series concrete pump adopt electric motor for power source, and HBTS/JBTS series pump adopt diesel engine for power source.

Model			HBS/HBTS40	HBS/HBTS50	HBS/HBTS60	HBS/HBTS80
Max. Theoretic capacity		m3/h	40	50	60	80
Max, Theoretic pressure		Mpa	10	12	12.5	15.7
Motor/Diesel engine power		kw	45/66	55/84	90/129	110/176
Max. Theoretic distance	Vertical	m	120	150	200	250
Max. Theoretic distance	Horizontal	m	250	300	500	800
Disribution valve type		--	S valve
Hydraulic oil circuit type		--	Oper Circuit
Specification of concrete cylinder		mm	Ø160x1000	Ø180x1200	Ø200x1800	Ø200x1800
Specification of main oil cylinder		mm	Ø100x1000	Ø125x1200	Ø140x1800	Ø140x1800
Oil tank capacity		L	300	300	420	420
Hopper capacity		L	600	600	600	600
Max. Aggregate diameter		mm	Slick scree: 30 Scree: 20	Slick scree: 40 Scree: 30	Slick scree: 50 Scree: 40
Dimension (LxWxH)		mm	4500×1750×1600	4800×1800×1650	5800×2000×1750	5800×2000×1800
Overall weight		kg	3200	3500	5500	5800
pulling speed		km/h	≤8
