Mobile Concrete Batching Plant

YHZS50 Mobile Concrete Batching Plant

Product description:
INQUIRY

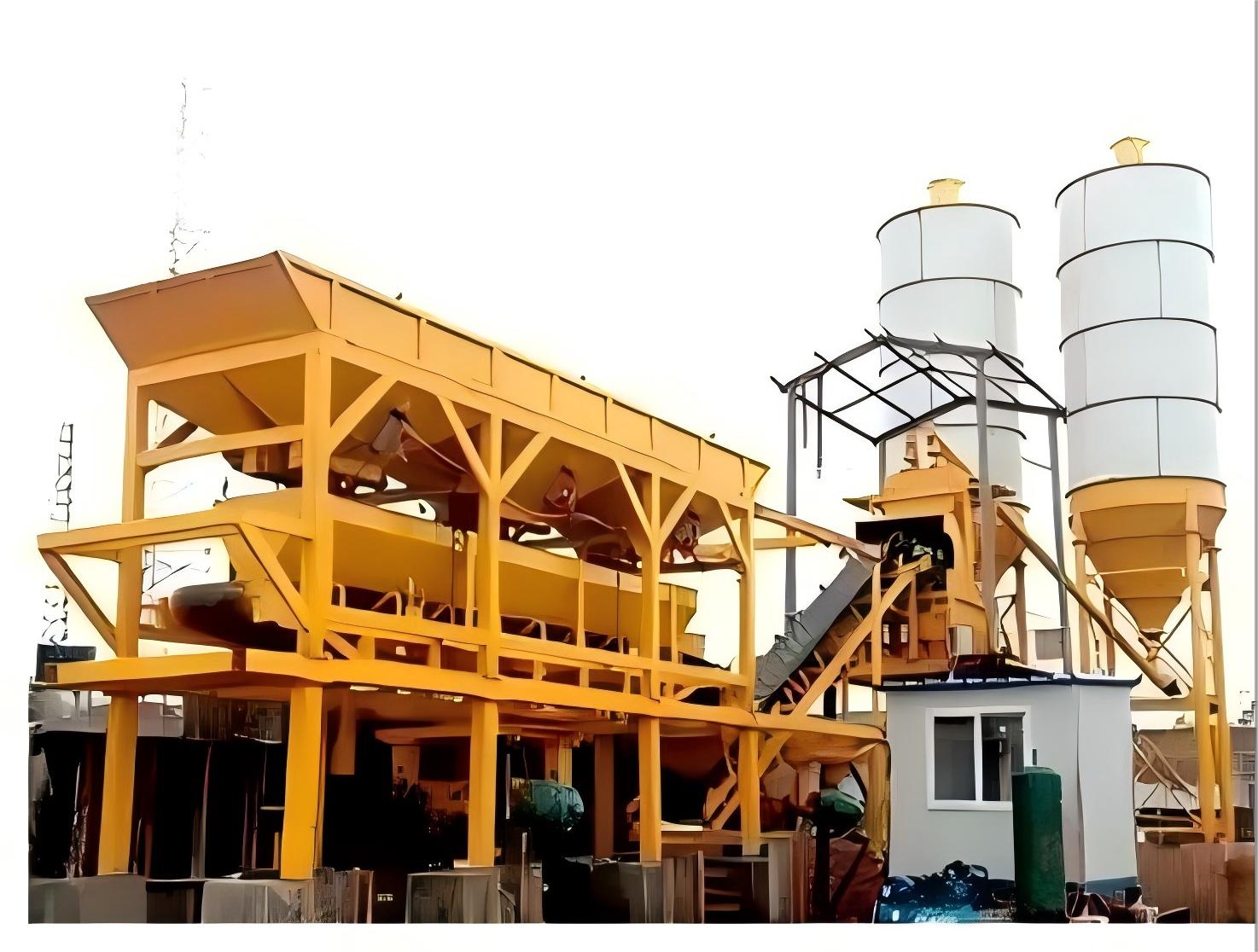

1. Mixing machine

2. Powder weighing scale

3. Additive weighing scale

4. Water weighing scale

5. Batching bin

6. Aggregate weighing scale

7. Belt conveyor

8. Cement silo

9. Screw conveyor

10. Control room

11. Feeding bin

12. Discharge port

Model	YHZM20	YHZM30	YHZM50	YHZM100
Production capacity (m3/h)	20	30	50	100
Concrete mixer	JZM500	JZM750	JZM1500	JZM2000
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1.5	1.5	1.5	1.5
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	42	46	67	77.5
Total weight)	12	13	14.5	26

Mobile Concrete Batching Plant:
1.Complete mobile unit, easily transported
2.Reliable and consist mixing performance,precise dosing...
3.High quality, good after-sale service
Sizes of Small Mobile Concrete Batching Plant:
YHZS25(25cbm/h) mini small mobile concrete batching plant,
YHZS35(35cbm/h) mini small mobile concrete batching plant,
YHZS50/60(50-60cbm/h) small mobile concrete batching plant,
YHZS75(75cbm/h) small mobile concrete batching plant
Why would our clients choose FOCUS mini small mobile concrete batching plant?
1.FOCUS MACHINERY boasts an award-wining small mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.
2.This series of small mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
3.As uniquely and compactly designed it is, this small mobile concrete batching plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing.

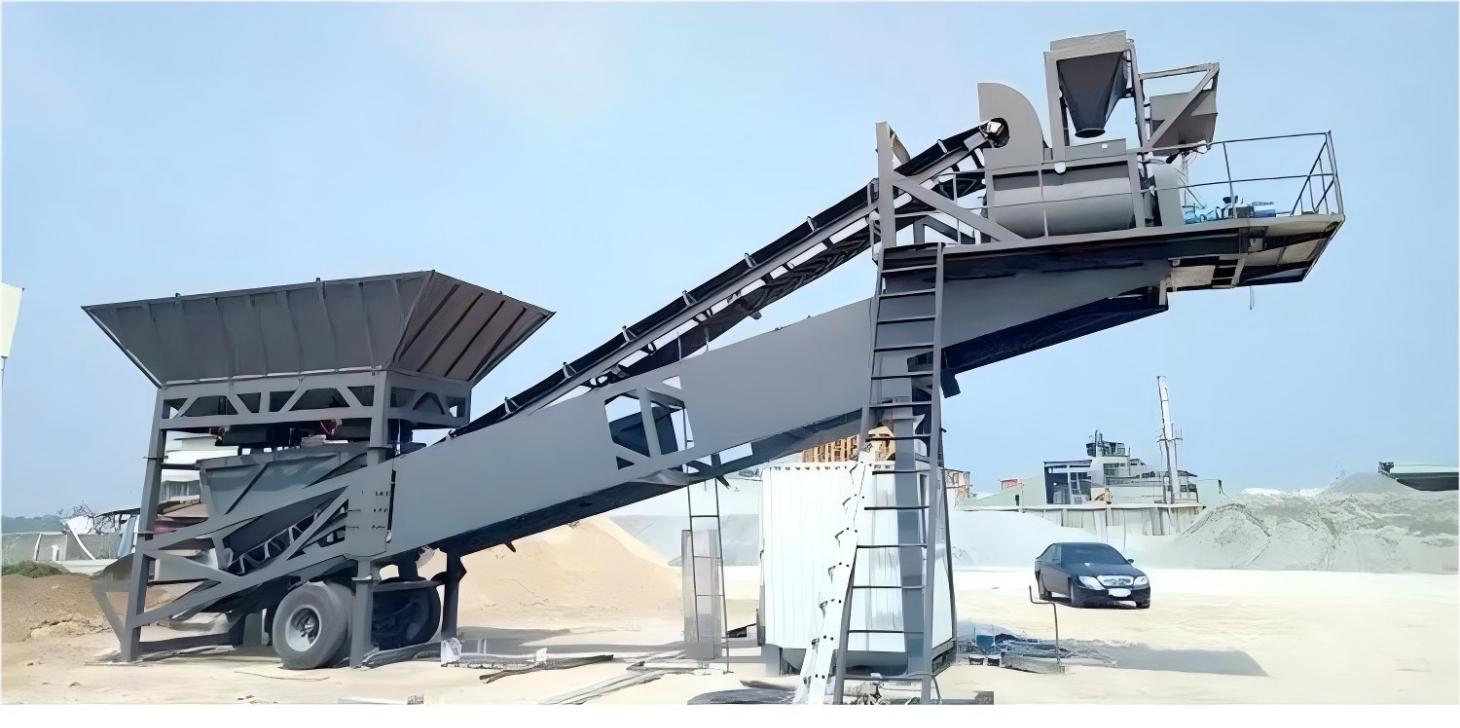

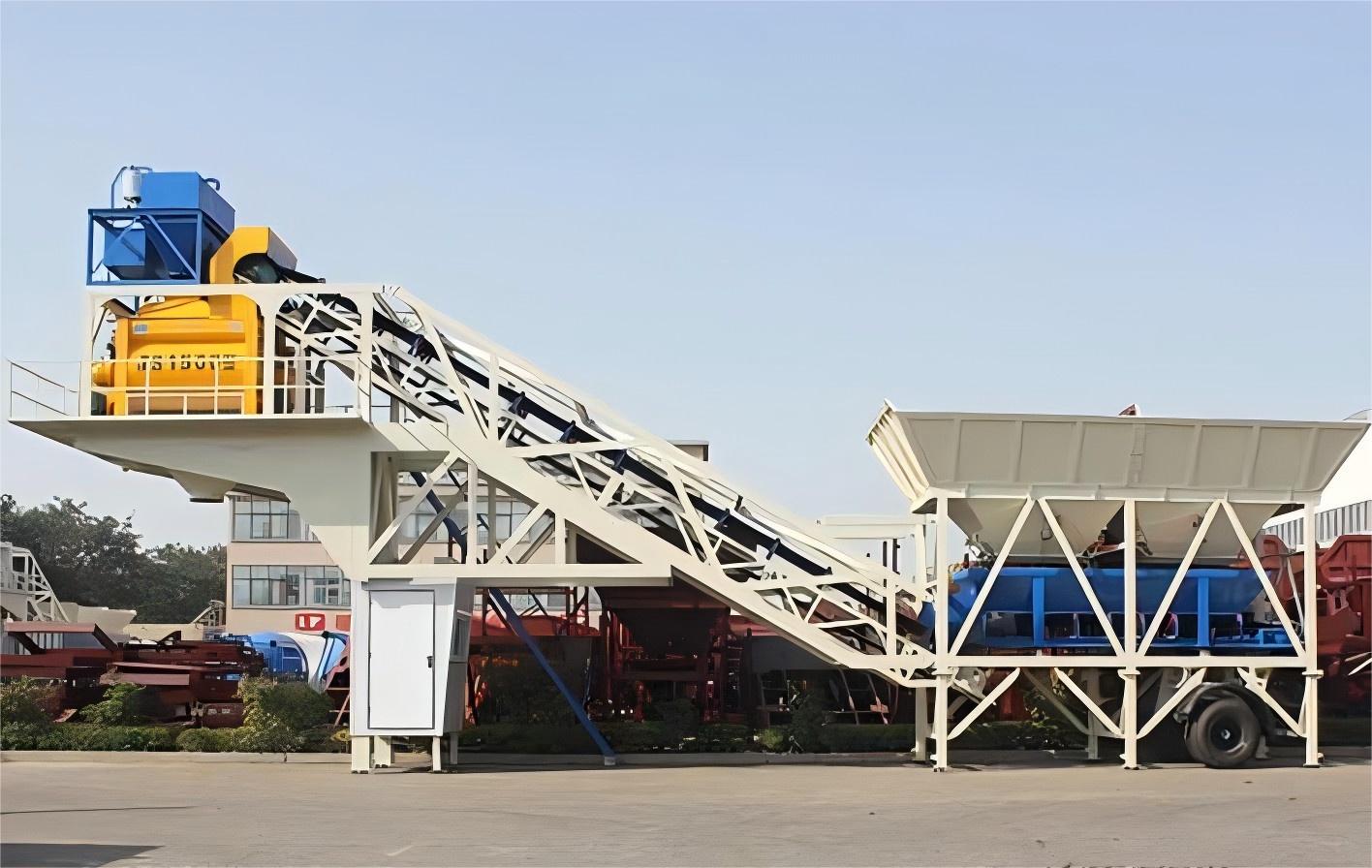

The mobile concrete batching plant is the ideal concrete plant for projects that require frequent removal from one site to another.
What are the main features of FOCUS small mobile concrete batching plant?
1. Complete mobile unit:
Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this small mobile concrete batching plant.
2. Reliability of mix consistency:
Computer and manual dual control mode can be converted easily by a simple switch, twin-shaft mixer offers this small mobile concrete batching plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners.
3. Highly precise dosing of water, cement, fly-ash and additive
Focus small mobile concrete batching plant dosing is realized by three-point suspension sensors, and they are all metered separately.
4. Optimized and modular design
FOCUS mobile concrete batching plant is convenient either for container transport or for towing vehicles.
