YHZS35 Mobile Concrete Batchxing Plant

Product description: Movable Concrete Pump Plant with Factory Price of China,Mobile Concrete Mixing Plant supplier
INQUIRY

Model		YHZS25	YHZS35	YHZS50/60	YHZS75
Output capacity		25m³/h	35m³/h	50-60m³/h	75m³/h
Overall power		40kw	60kw	85kw	105kw
Discharge height		3800mm
Max. hauling speed		40km/h
warranty		13months after commissioning
After-sale service		Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer		JS500	JS750	JS1000	JS1500
Motor power		18.5kw	30kw	18.5kw×2	30kw×2
Max. aggregate dia.		80mm
Aggregate batcher		PLD800	PLD1200	PLD1600	PLD2400
Aggregate weighing precision		±2%
Aggregate feeder		Belt conveyor
Other scale scope	Cement	±1%
	water	±1%
	additive	±1%
Control system		Auto computer control, 1 set
Pneumatic system		1 set

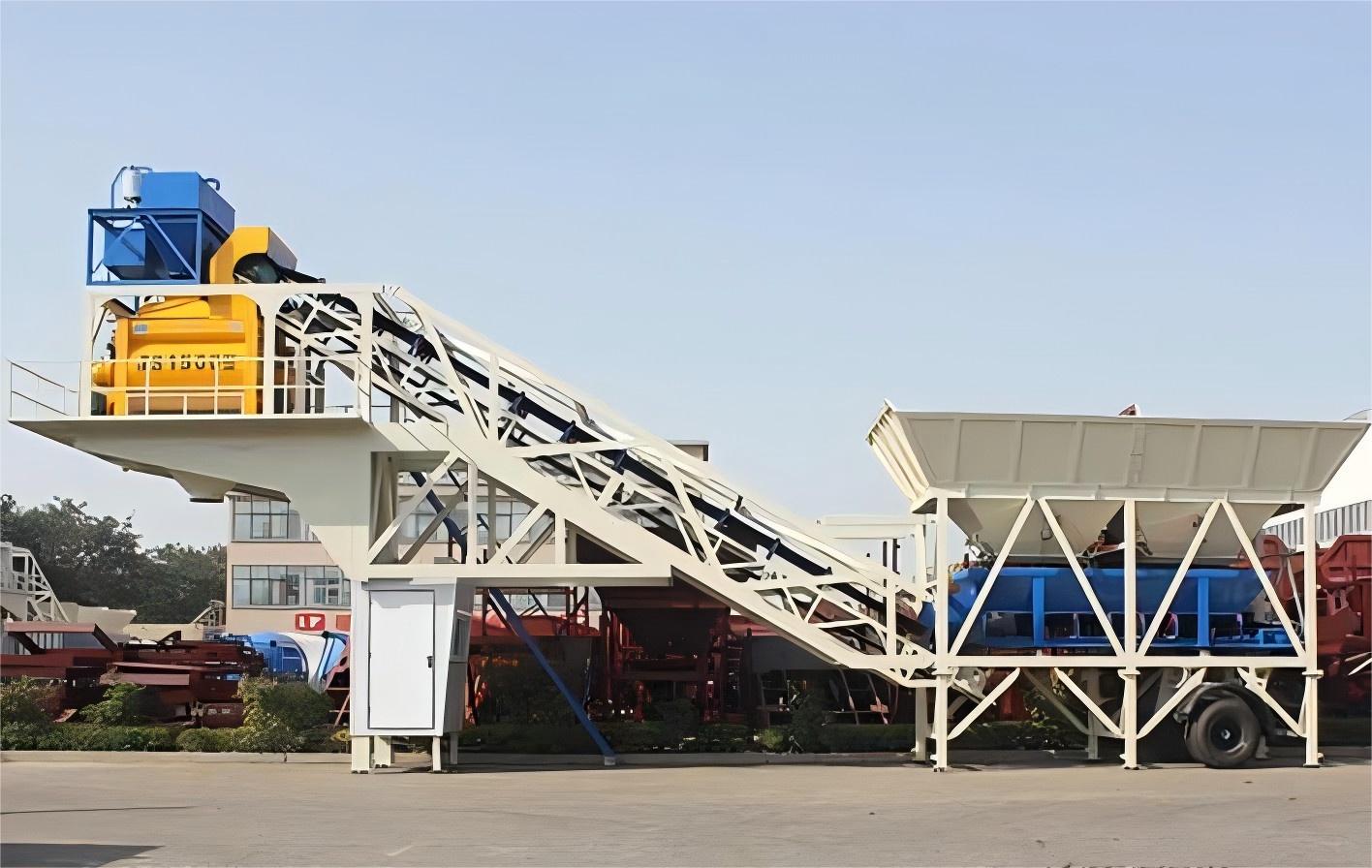

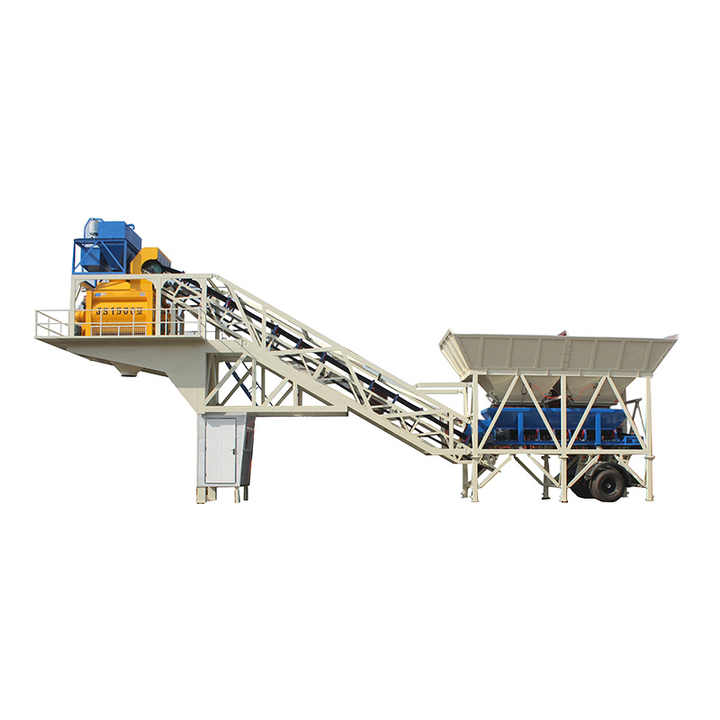

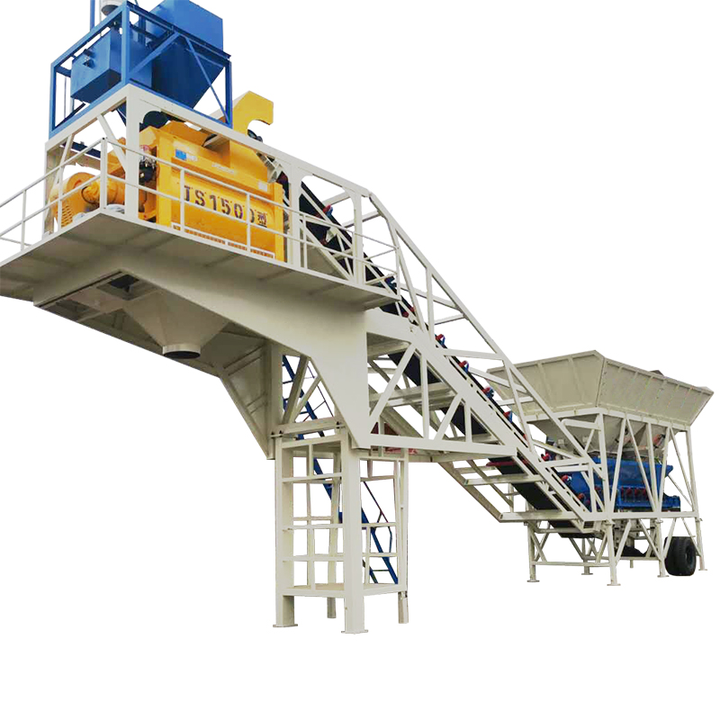

Mobile concrete batching plant is specially designed for projects that we need to change work sites from time to time. It is very easy to be disassembled and moved to another work site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including cement silo. So it is very easy to install on a new work site; You just need a car to tow it to the new work site, place the machine in the right position and connect the cables, then you can use it. Usually, we can finish the installation within 3 days;

Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have now is from 20m3/h to 100m3/h. Welcome to contact us for details and quotations.
