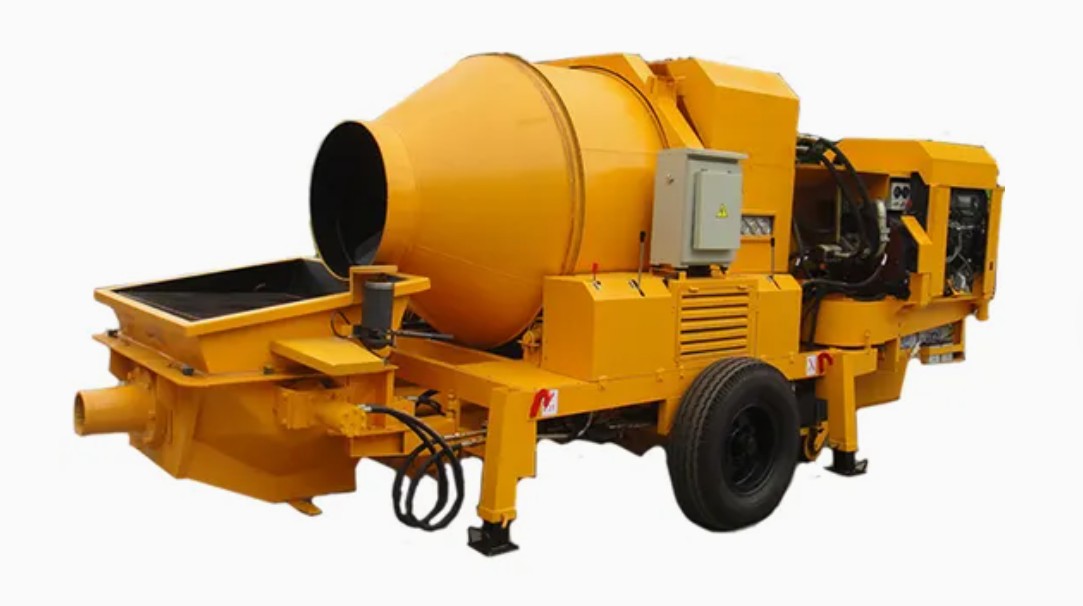

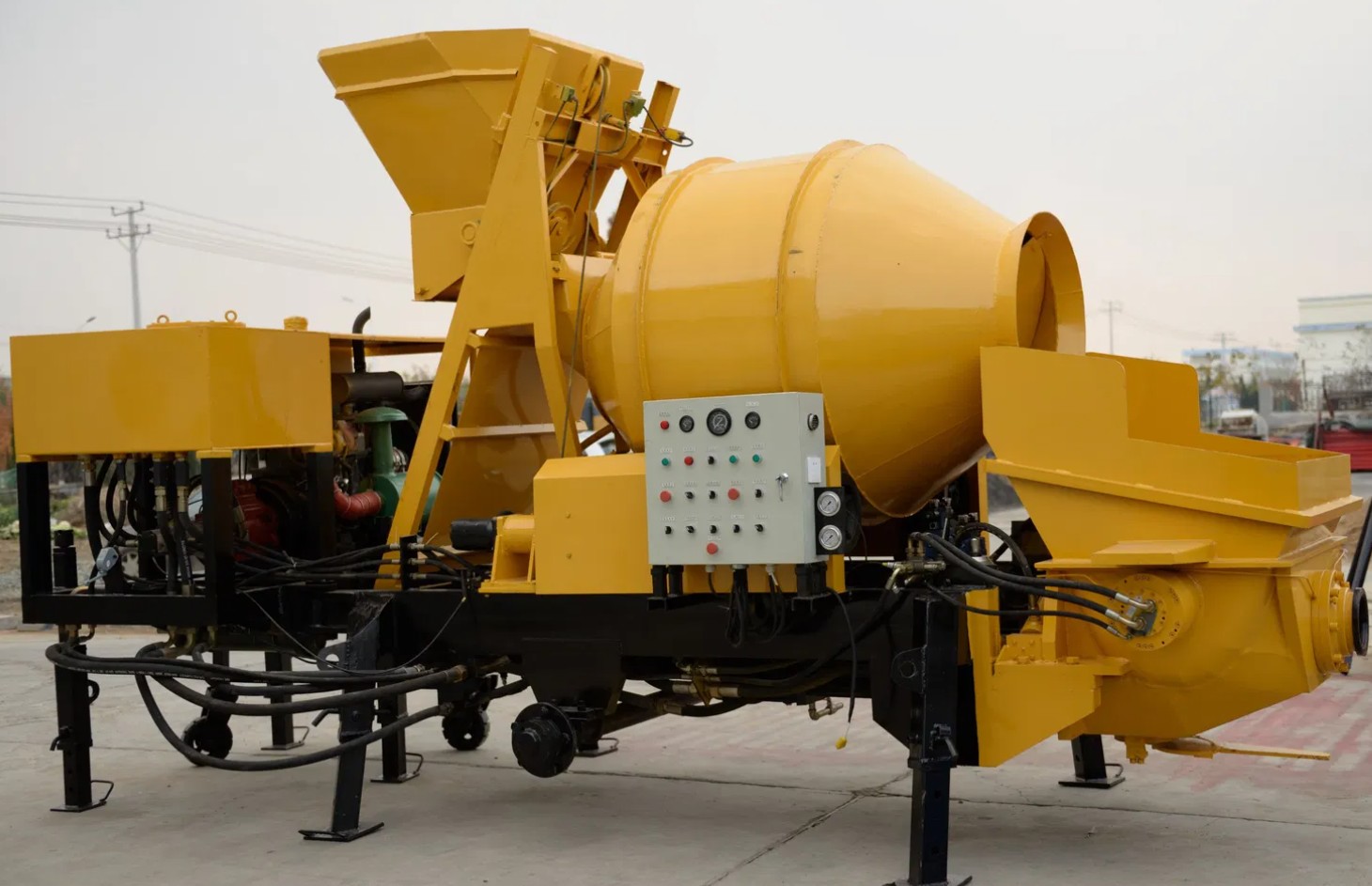

High Quality High Efficiency Concrete Pump with Mixer

portable concrete mixer and pump, electric concrete mixer with pump JBS30-10-37

Power system

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted.

The main power could be adjusted by the user

Hydraulic system

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system.
Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.

A number of high pressure accumulators and their excellent cushion performance reduce the requirement of S pipe vale for the concrete.
The concrete is delivered freely.

Pumping system

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the
condition.

Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service
life of the S pipe outlet.

Lubrication System

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize
automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

Cooling System

Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system  works at normal status.
