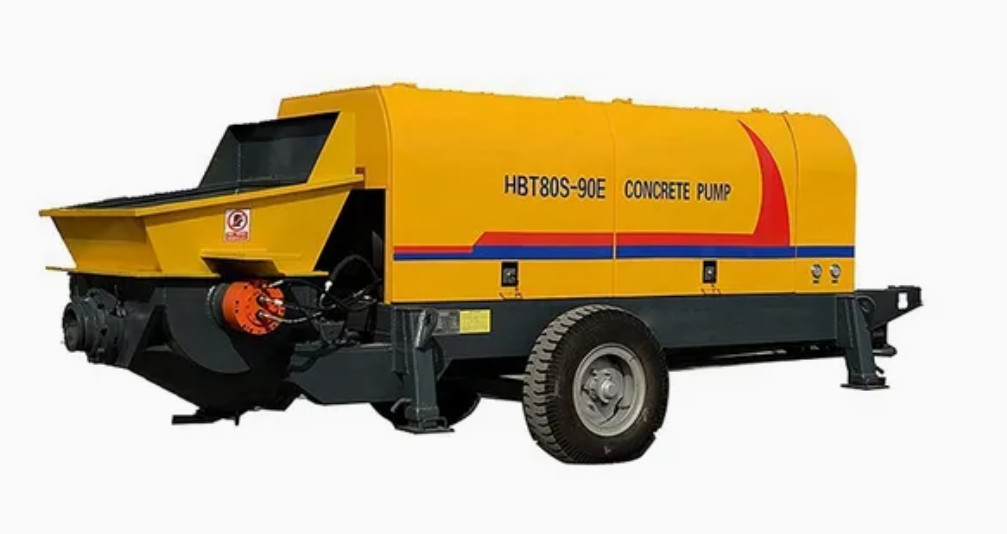

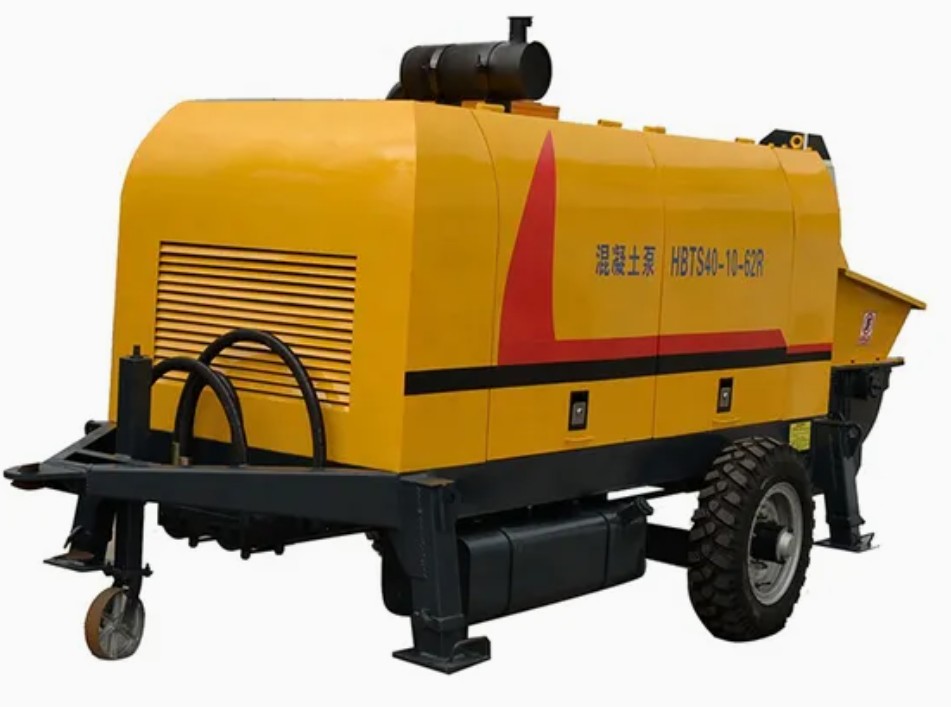

High Pressure Concrete Pump Trailer Pump with Diesel or Electric Engine
- Product description:
HBTS60R Concrete Trailer Pump
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components' life is prolonged greatly. This is convenient for judging and removing trouble
2. The electric control system is simplest, the element quantity is fewest and its reliability is highest. The wire remote equipment is convenient for operation far away.
3. The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage
4. The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil. It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs the life of piston and other sealings
5. The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and makes the machine in normal status
|
Item
|
Unit
|
HBTS60R
|
|
Max. theo. concrete output (L/H)
|
m3/h
|
80/40
|
|
Max. concrete pumping pressure(L/H)
|
MPa
|
13/7.6
|
|
Distribution valve type
|
|
S Valve
|
|
Concrete cylinder (diameter*stroke)
|
mm
|
Ф200*1,650
|
|
Hopper capacity*feeding height
|
L*mm
|
680*1,400
|
|
Outlet diameter
|
mm
|
Ф180
|
|
Inside diameter of delivering pipe
|
mm
|
Ф125
|
|
Dimensions (L*W*H)
|
mm
|
5,800*2,000*1,750
|
|
Total weight
|
kg
|
5,800
|
