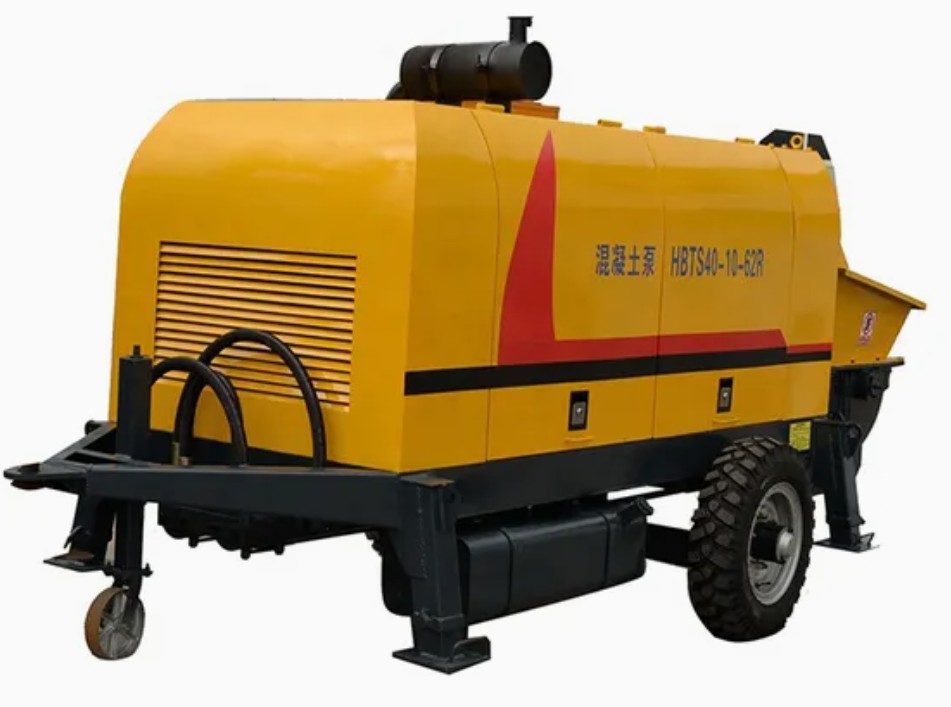

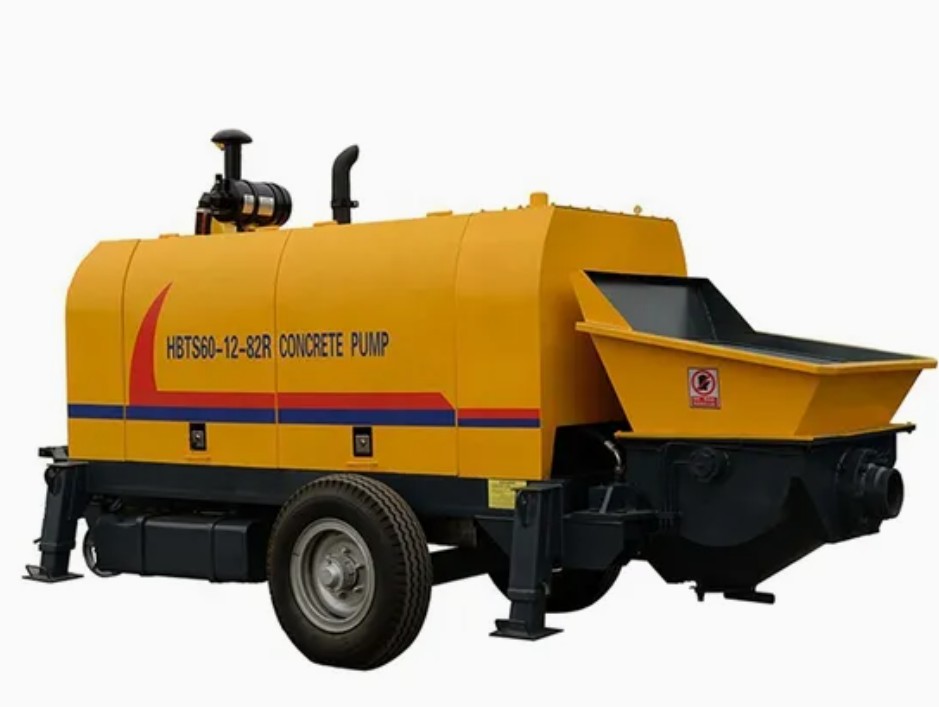

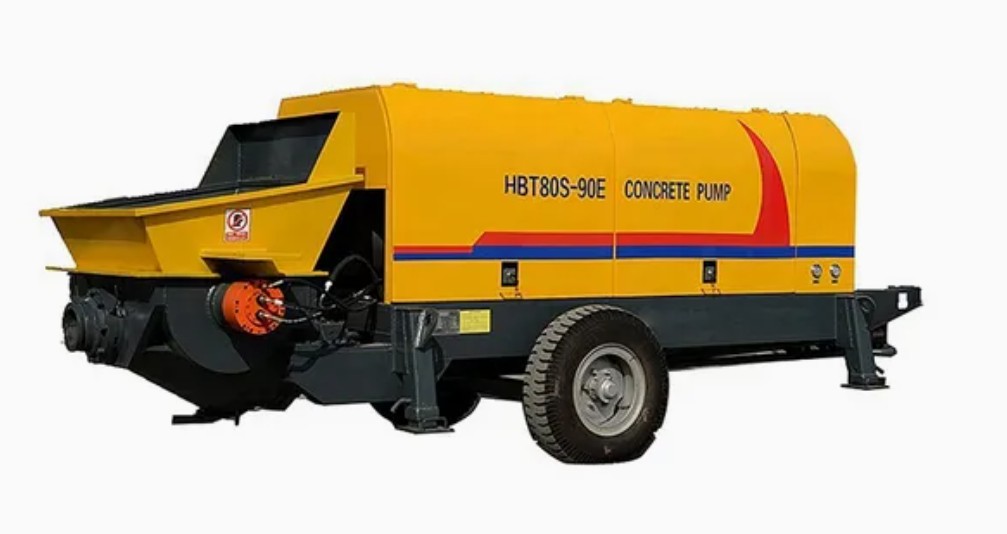

Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Operators and relevant equipment managers should read the instruction manual carefully to master its structural principle, use and maintenance, and relevant knowledge of pumping concrete; when using and operating the concrete pump, they should strictly follow the instruction manual. Because the operator needs to have a process to fully grasp the mechanical properties, the instruction manual should be spared randomly. At the same time, special operating points should be formulated according to the instruction manual to effectively control some variable factors in the pumping technology, such as pump location, pipeline arrangement, etc.
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Maximum Theoretical Concrete Delivery Volume | 25m³/h |
Maximum Pumping Concrete Pressure | 10MPa |
Dispense Valve Form | S-pipe valve |
Concrete Conveying Cylinder Bore*Stroke | Φ160*750mm |
Outlet Diameter | Φ125mm |
Rated Power | 4120 |
Rated Speed | 1280r/min |
Hydraulic Circuit Form | open circuit |
Pumping Xiyong Oil Pressure | 18MPa |
Stirring System Oil Pressure | 8MPa |
Hydraulic Tank Volume | 250L |
Maximum Conveying Vertical Distance | 120m |
Maximum Conveying Horizontal Distance | 250m |
Maximum Particles Allowed | 30mm |
Dimensions L*W/*H | 3400*1100*1700mm |
Total Mass | 1500kg |
